Gamified Smart Punching Bag Prototype

Smart device that connects to a computer and controls a game hero when a player punches the bag correctly.

One of the biggest martial arts organizations in the USA. The client’s academies have been providing training programs and services to thousands of members worldwide for almost forty years.

Case Highlights

Illuminates spots to punch
Connects to a PC via USB
Allows users to earn points in the game when they kick the bag correctly

Problem

The client wanted to enrich the training experience and improve commit for young students—both in the academy and at home.

Softeq conducted a bootcamp for the client to systemize market data, understand the target audience, and identify business opportunities. The bootcamp resulted in an idea of an interactive punching bag paired with an engaging martial arts game. The software and hardware combo would allow children to master kicking techniques in an innovative and exciting way.

Together with the client, we worked out the most important requirements.
The punching bag had to have:

9 kicking zones
Sensors that provide feedback on punches—both visual and sound effects
Modern and unconventional design
Controller-like capabilities

The game needed to have a fun and simple gameplay.

Solution

Gamified-Smart-Punching-Bag-Prototype-portfolio

Overview

We built a punching bag prototype according to the requirements and developed a ‘Guitar Hero” like game. The bag is used as a joystick—upon kicking it at the right time and right spot, it sends signals to a connected PC with a pre-installed game. The game character attacks its opponent and the player gets reward points.

Punching Bag

The bag is a hexagon cylinder with three front active sides and three back sides used for highlighting user interaction.

Each front side has three zones for punches—24, 44, and 64 inches above the ground—nine in total. Each zone is equipped with sensors, lighting, and speakers:

Sensors detect the player’s kicks accuracy
RGB lighting indicates a target zone and shows whether kicks are successful
Speakers provide audio feedback on each kick

Back sides are equipped with LED lighting.

The punching bag connects via USB to a PC with a fighting game on it. The PC is, in turn, connected to a TV set via HDMI. Thus, the player can follow their progress on a big screen.

Desktop Game

We involved the Softeq gaming development department—“zGames”— to design a fighting game.

The game is closely tied to the music. All events in the game are synchronized with the rhythm of the musical composition. Actions made by the player during the game will affect the music.

The player's task is to kick the punching bag at the right moment. The avatar repeats all of the player's kicks at attacking the enemy.

Each kick is tied to the beat of the music and accompanied by vivid visual effects.

The fight always ends with the player winning when the music track ends. The player sees their statistics at the end of each fight. Top-30 high scores are highlighted.

Extra Service

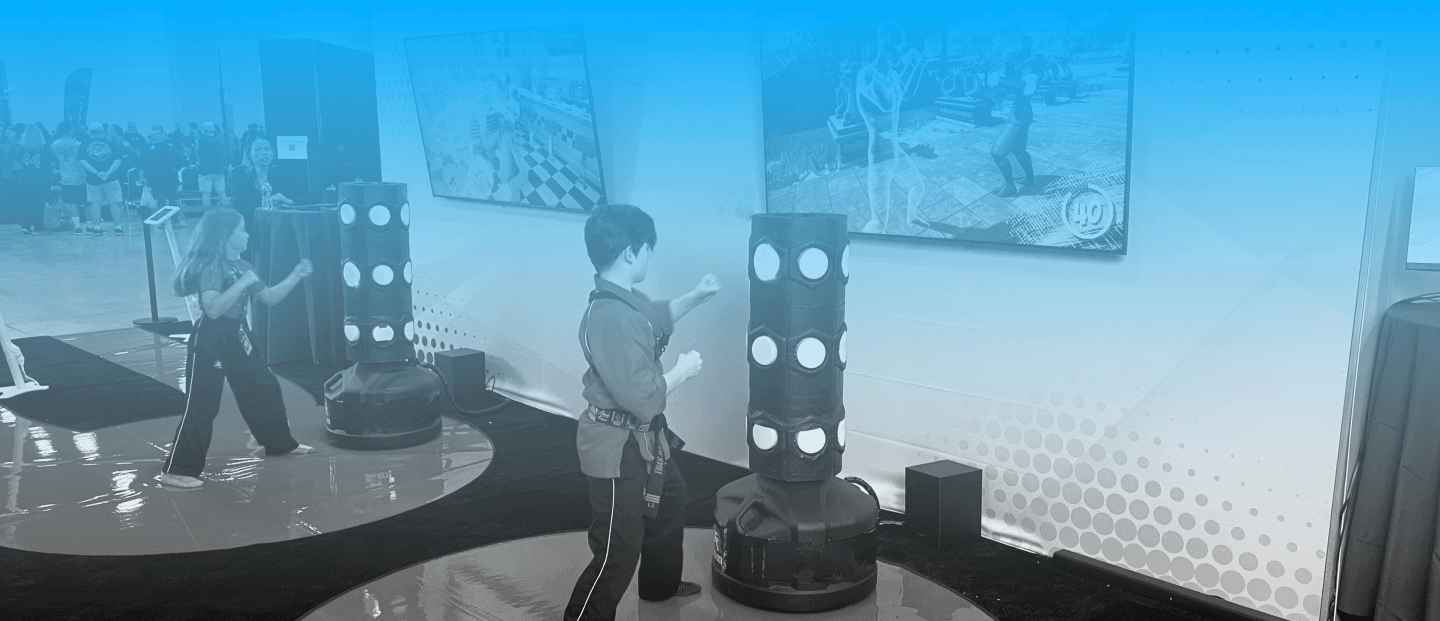

We arranged for the client to participate in an Expo during a local martial arts contest. They set up a stand with two smart punch bag samples for the attendees to try out. The client was able to test the solution under real conditions and gather valuable user feedback.

Have an Immersive Game Idea?

See how we blend cutting-edge tech like AR, VR, and AI to create the ultimate gaming experience Learn more

Ibrahim Regional Business Development
Manager, Americas

Result

Project Outcomes

Softeq created, manufactured, and delivered prototypes of a smart punching bag along with a desktop game. The hardware and software were accompanied by a product vision, which includes several monetization models and multiple user scenarios. The client is currently testing the solution to understand the market potential.
